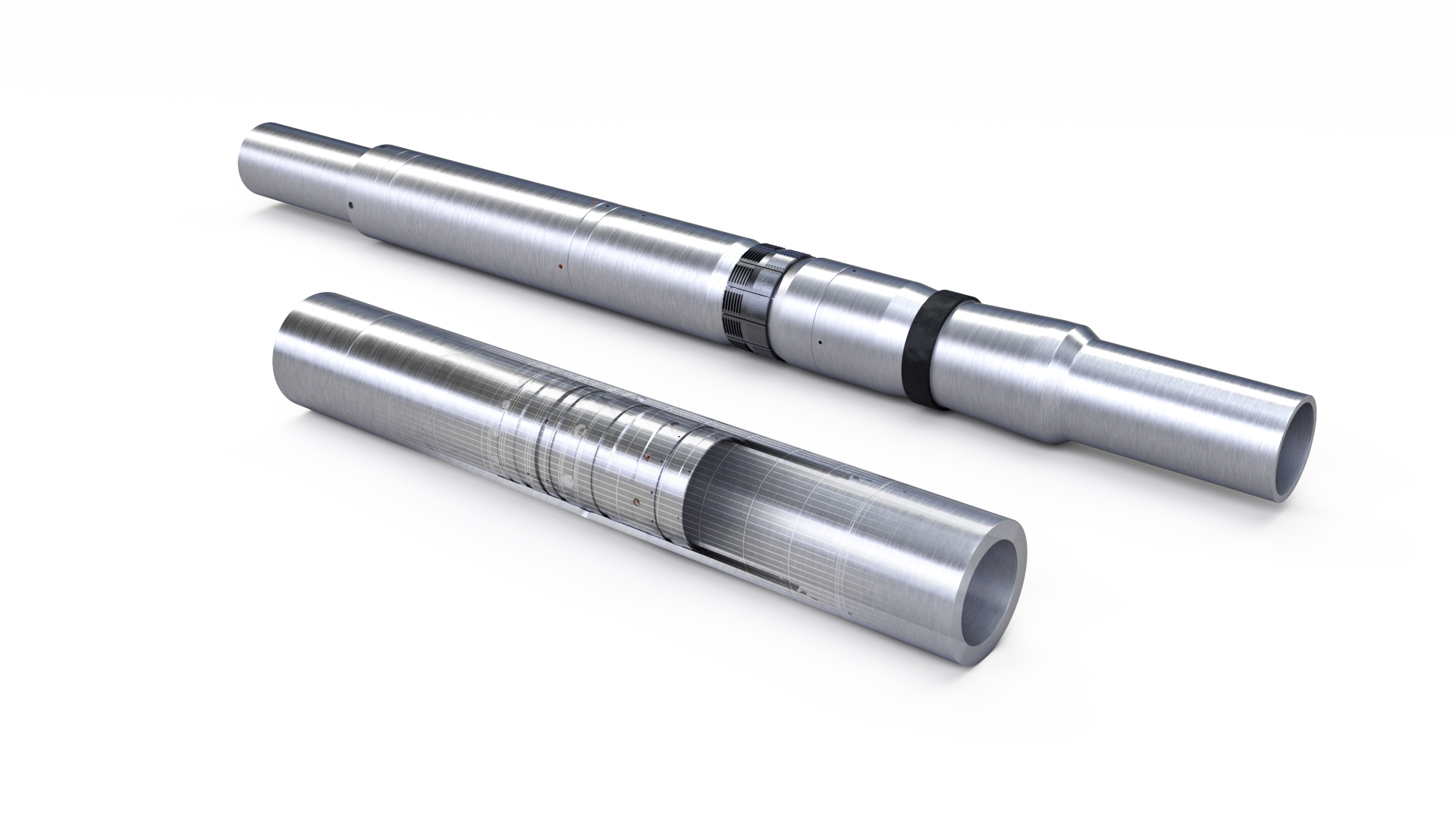

Diverter Valve (DV) and DV Packer
Enabling two-stage cementing with reliable hydraulic activation and gas-tight performance in challenging wells
The Diverter Valve (DV) is used with the DV Packer (ECP) to provide a two-stage cementing application for 9 5/8” casing. The DV assembly provides a hydraulically activated flow path from tubing to annulus with controlled activation pressure requirements. Once opened for circulation, the DV is closed via casing wiper. The DV has been API 19AC V0 qualified to provide a gas-tight well in challenging environments.
Diverter Valve (DV) & DV Packer offer many features & benefits:
- Controlled actuation pressure and sequence
- Full drift IDs with single exposed lip
- Minimal seat material to drill out
- 10,000 psi operating pressure at temperatures of 325F
- API 19AC V0 tested
